3x3m motorized pergola

Electrically Adjustable Roof Louvers

The pergola is equipped with electrically adjustable roof louvers.
When the louvers are fully closed, the structure is completely waterproof during light to moderate rainfall.
In case of heavy or intense rain, a minimal amount of water ingress may occur.

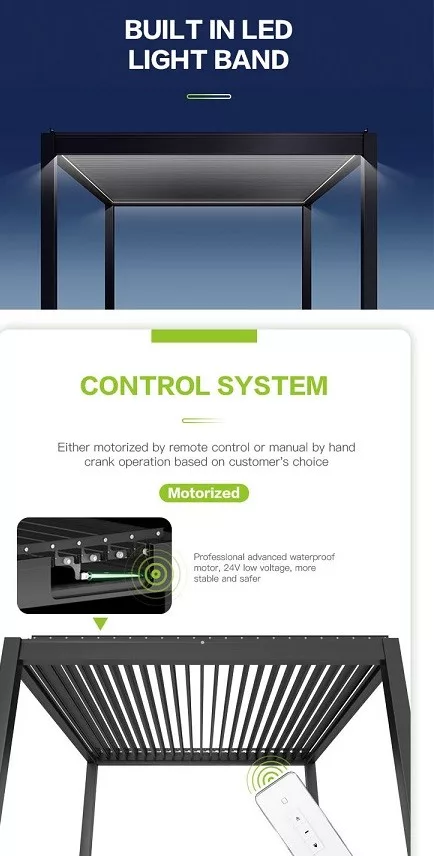

Integrated LED Lighting

- Built-in LED lighting
- SMD2835 LED strip
- Color temperature: 6000K
- LED strip dimensions: 10 mm wide, 5 mm thick
- Operating voltage: 24V
- Power consumption: 1 W/m
- Fixed color and color temperature

Both the roof louver motor and the LED lighting are controlled via a wireless remote control.

Certifications & Testing

- The pergola comes with CE certification and an SGS certificate
- Wind resistance test:
The structure was tested in a wind tunnel from all sides for 5 × 30 minutes at wind speeds of
10, 15, 20, 24 and 28 m/s (up to approx. 100 km/h)
The construction passed all tests without issues and is capable of withstanding such wind speeds over extended periods.

Expandability

-Can be extended with an additional 3 × 3 m or 3 × 4 m pergola module

Dimensions & Technical Specifications

- Total weight: approx. 160 kg
- Frame material thickness: 1.4 – 2 mm
- Overall dimensions (approx.): 2,964 × 2,964 × 2,503 mm (width × length × height)
- Base plate thickness: 8 mm
- Post dimensions: 120 × 120 mm
- Base plate dimensions: 180 × 180 mm
- Louver material thickness: 1.1 mm

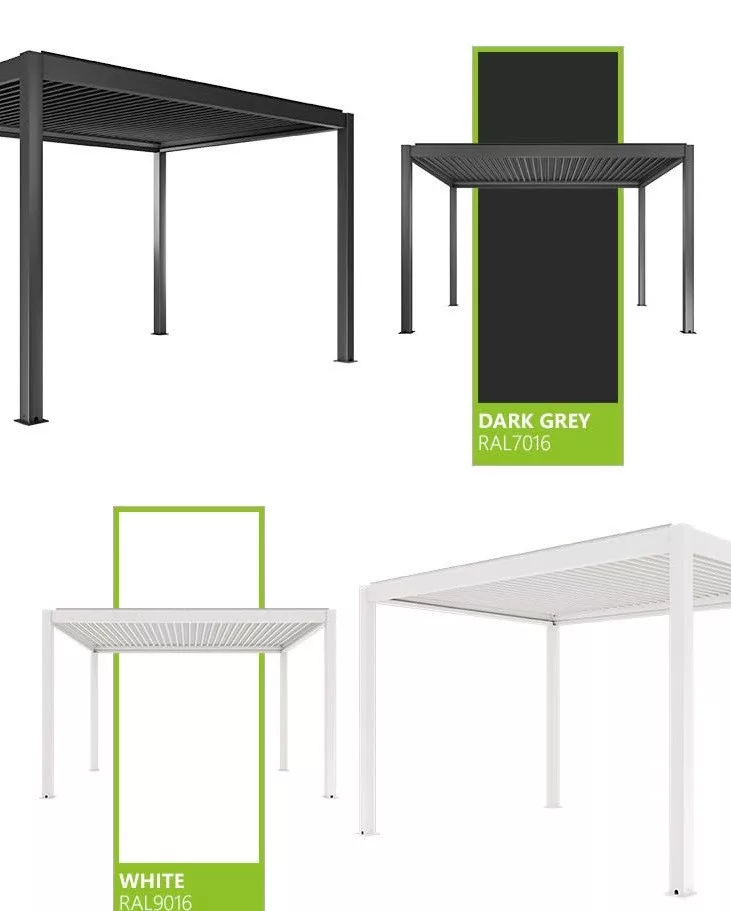

- Color: White and anthracite

Installation

The pergola can be comfortably assembled within 3–4 hours, making your dream terrace ready in no time.
